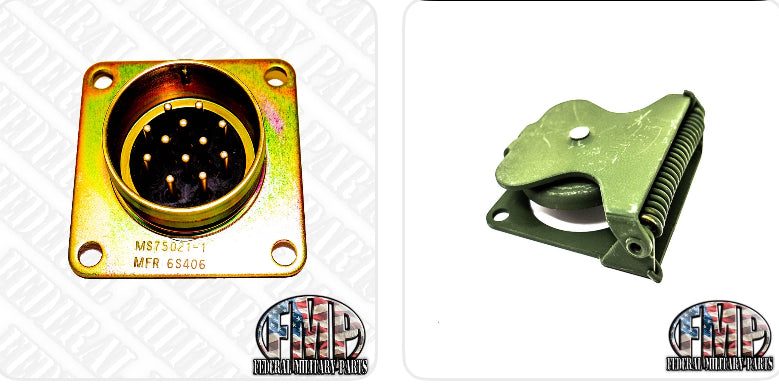

Set MS75021-1 Brass 12-Pin Socket And Socket Cover Plate 7731428

This item includes two components; The brass 12-pin receptacle MS75021-1 and the Cover Plate 7731428 for the receptacle.

Amphenol Trailer mounted receptacle. MS75021-1, alternate numbers 2HA24, 7525173, 60-036028-51P. NSN 5935008463883  5935-00-846-3883

WIRING INSTRUCTIONS:

Standard Military vehicle wiring information (letters are marked next to connector contacts)

A, C, H - blackout tail lights and blackout clearance lights (all three pins are electrically connected together within vehicle's wiring harness)

B - brake light and left turn signal light

D - ground

E - tail lights / clearance lights

F - blackout brake light

J - brake light and right turn signal light

K - auxillary power feed used on semi tractor only

L, M, N - not used

This plug is used for many American and NATO vehicles from World War 2 to todays military trucks and trailers.  MS75021-1 Trailer Socket Military 12 Pin Brass Electrical Connector Plug M998

Key words: Kaiser jeep M715

Always be sure to use di-electric grease for all electrical connections to ease assembly of connectors and seal out moisture.  BUY HERE
